Xinsu Global Electronic Co.,Limited, A Chinese battery charger, AC DC adapter factory with more than 10 years history. Product cover range from 3W to 220W with UL, cUL, FCC, PSE, CE, GS, SAA, RCM, C
10 Years
| Ask Lasest Price | |
| Brand Name : | XinsuGlobal |
| Model Number : | XSG1205000 |
| Certification : | UL,cUL,FCC,PSE,CE,LVD,GS,SAA,RCM,C-tick,CCC.etc |
| Price : | USD 7.5/PC |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 500000PCS/month |
| Delivery Time : | 15-20days |
Product Description

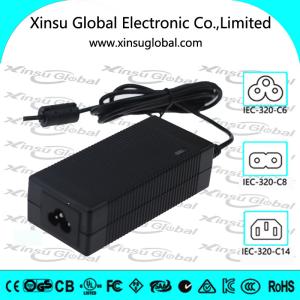

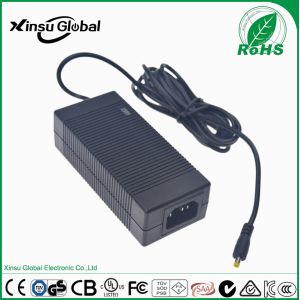

portable power adapter ,60W 12V 5A power adapter for LCD tv ,led camera,security system.etc with US DOE Level VI energy efficiency UL cUL FCC PSE CE GS LVD SAA RCM C-tick CCC safety marked 60950 61558 60335 standards. IEC-320-C6, IEC-320-C8, IEC-320-C14 outlet
Product Parameter
| Input | 100-240VAC,50/60HZ |
| Input Connector | IEC-320-C6, IEC-320-C8, IEC-320-C14 |
| Output | 12Vdc, 5A |
| Output Connector | Customized |
| Efficiency | 87% |
| No Load Power Consumption | ≤0.5W |
| Protection Characteristic | OVP;OCP;SCP; Hiccup protection,automatic recovery |
| HIPOT | 3KVAC,5mA,60s |
| MTBF | 50,000HRS |
| Operating Temperature | -20℃~ +45℃ |
| Storage Temperature | -30℃~ +70℃ |
| Dimension | 116mm*52mm*34mm |
| Net Weight | 0.25KG/PC |
| Package | White Box,50pcs/CTN |
| MOQ | 200pcs |
| Lead Time | Sample:5days,Mass production:15-20days |
| Safety Standards | GB4943,EN60950,EN55022,EN61000,EN60335,J60950 UL60950-1,CSA C22.2,IEC60950-1,AS/NZS60950 |
| Certificates | UL, cUL, FCC, PSE, CCC, CE, CB,TUV/GS, LVD, EMC, KC, RCM, SAA, C-Tick, PSB |
| Energy Efficiency | DOE:Ⅵ; Erp; Nrcan; MEPS |
| Environmental Protection | RoHS, REACH |
| Markets | Worldwide |
